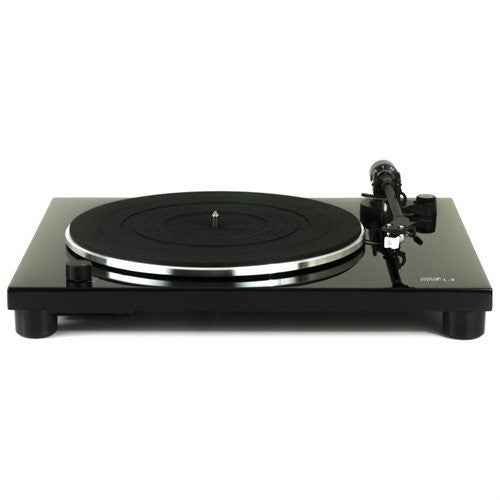

Music Hall MMF1.3 Turntable Phono PreAmp With Mounted Cartridge Piano Black

The Music Hall MMF-1.3 Turntable sets a new benchmark for affordable audiophile turntables.

With a built-in phono preamplifier and a quality, pre-mounted cartridge, the MMF-1.3 is everything you need to start listening to vinyl right out of the box!

Product Features:

Focus on components: Our new entry-level turntable provides a feature set that is unrivaled at its price. The construction of the mmf-1.3 has been simplified to focus on the critical components; the bearing, the motor, and the tonearm.

A complete package: A 3-speed belt driven turntable that comes complete with a tonearm, mounted cartridge, and built-in phono amp.

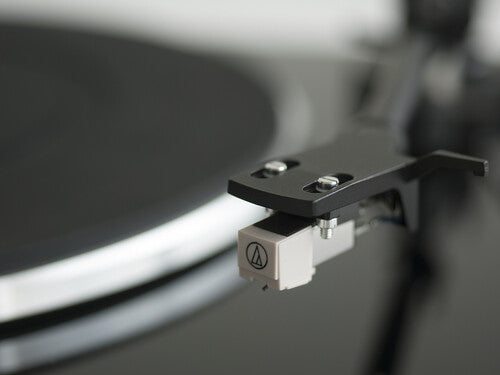

Pre-mounted cartridge: A quality Audio-Technica AT3600L cartridge is pre-mounted and precision-aligned.

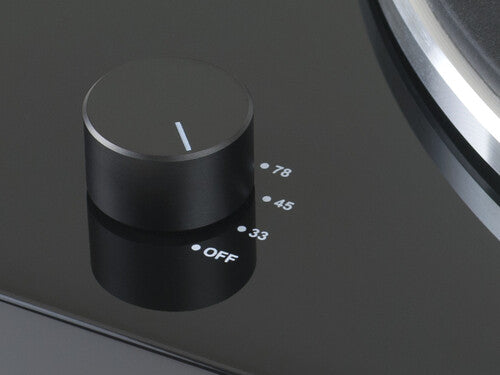

Speed control: A built-in speed control circuit ensures the accuracy of the mmf-1.3’s 3 speeds.

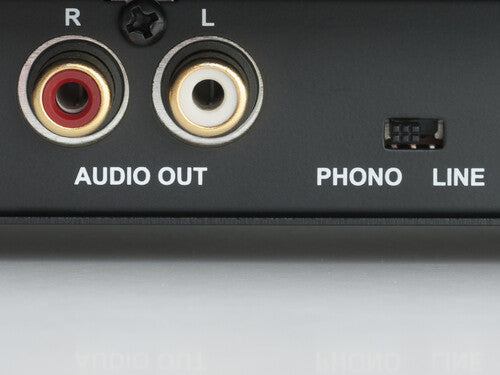

Built-in phono preamplifier: A built-in phono preamplifier allows you to connect directly to your current system.

Dust cover: A hinged dust cover keeps your mmf-1.3 protected when not in use.

Specs:

General:

• Power supply: DC12V，2.0A universal power supply.
• Consumption: 4W
• Dimensions: 17.1(W) x 14.5(D) x 4.2(H) in. / 435(W) x 367(D) x 106(H) mm
• Weight: 11lbs. | 5Kg
• Piano black MDF plinth
• Vibration-damping rubber platter mat
• Removable RCA cables
• Vibration-damping feet

Turntable:

• Type: 3-speed full manual
• Motor: Electronic speed controlled DC motor
• Driving method: belt drive
• Turntable platter: 296mm dia. aluminum die-cast
• Speeds: 33 1/3, 45, and 78rpm
• Wow and flutter: typical: less than 0.1% WTD at 3KHz RMS(CD-4005)
• Wow and flutter: limit: Less than 0.15% WTD at 3KHz RMS(CD-4005)
• S/N ratio: more than 62dB (DIN-B) (SS-4242)
• Tolerance: 3000Hz +/-1%(CD-4005)

Cartridge:

• Type: moving magnetic cartridge (Audio Technica AT3600L cartridge ($50 value))
• Stylus: diamond stylus
• Phono output level: 1.5~3.6 mV at 1KHz 5cm/sec (CD-4005)
• Line output: 90-216 mV at 1KHz 5cm/sec (CD-4005)
• RIAA: 20Hz~20KHz: +1/-3 dB
• Output voltage: 2.5mV +/- 3dB at 1KHz 3.54cm/sec (AT6606A)
• Frequency response: 0 +/-3dB at 10KHz (AT6606A)(Value at 10KHz based on value at 1KHz)
• Tracking force: 3.5 ± 0.5 g

Tonearm:

• Type: dynamic balanced straight shaped w/soft damping control. Aluminum tonearm with removable headshell
• Effective arm length: 221.5mm
• Overhang: 19mm
• Stylus pressure adjustment method: rotation movability
• Arm lifter: oil damper type
